Miniature Steam Pty Ltd
4060 - 3 inch Horizontal Marine Boiler
4060 - 3 inch Horizontal Marine Boiler
A 10% GST is included in these pages for Australian Customers. Prices for International Visitors are not taxed when accessing their own currency.
Couldn't load pickup availability

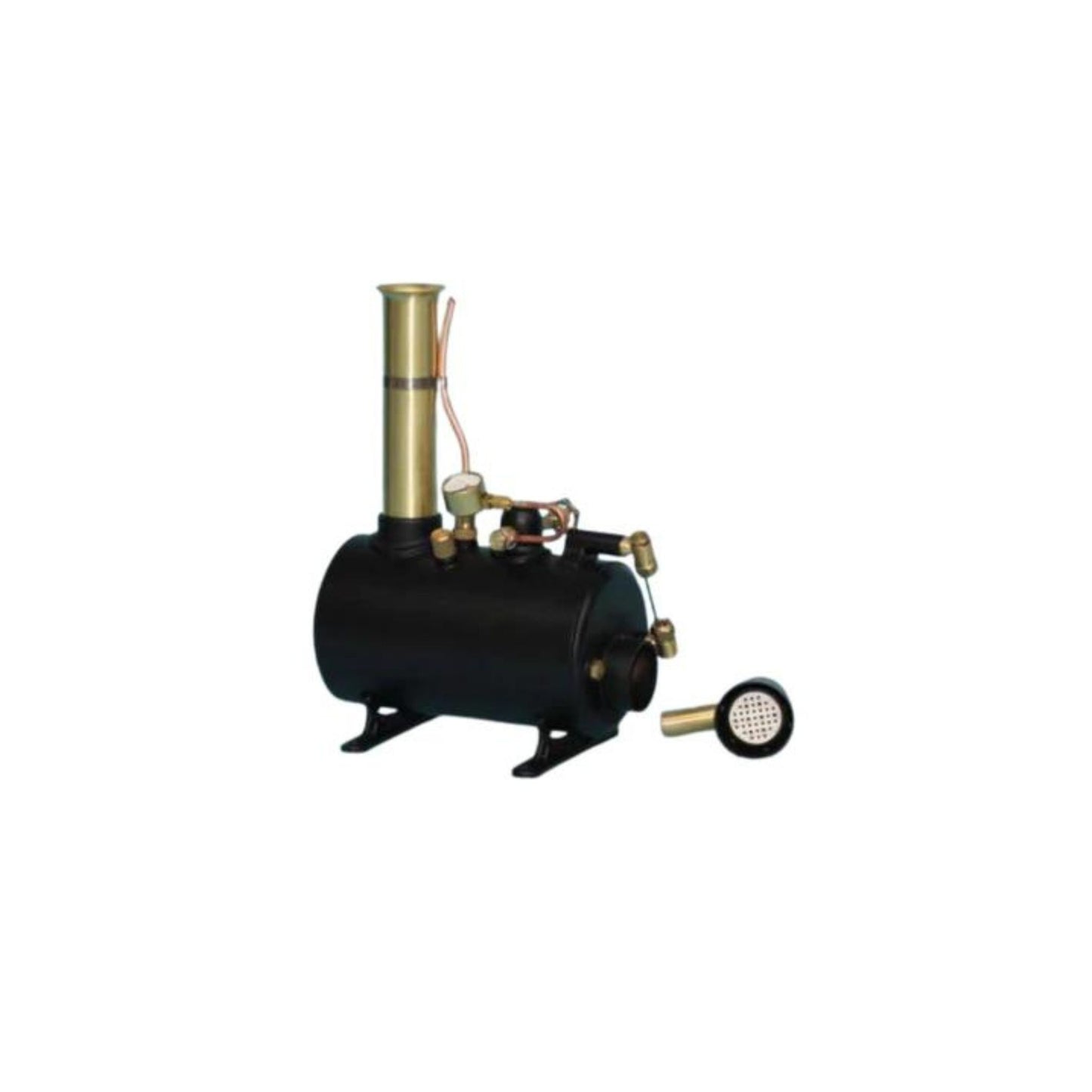

3" Horizontal Boiler: P/N 4060
- including Ceramic Burner, Safety Valve, Wood Lagging Kit, Pressure Gauge & Boiler Test Certificate
Overall Dimensions:
Diameter 76.2 mm (3 inch)
Width including stand 90.0 mm (3.5 inch)
Height top of steam pressure gauge 125.0 mm (4.9 inch)
Height top of steam flue 220.0 mm (8.7 inch)
Length without burner 150.0 mm (5.9 inch)
Length with burner attached 185.0 mm (7.3 inch)
Weight dry 1.2 kg (2.6 lbs)
Working pressure 35psi (3 bar)
Test pressure 120psi, (8 bar)
Water fill (75% of space) 260 ml approx.
Design & Construction Standards:
“Miniature Steam”, boilers are built to the highest quality standards.
They comply. where appropriate, with the following design, construction and testing requirements of:
- Australian Standard AS 4343 Level E
- Australian Miniature Boiler Safety Committee, (AMBSC) code part 3 Issue 1.0 - 2006 Sub-Miniature Boilers and AMBSC code part I . Issue 7 - 2001
- UK Boiler Test Code 2018 – Volume 2
Every aspect of the boilers has been carefully designed and rigorously tested to meet the highest possible steam generation performance. Each has been designed and manufactured by “Miniature Steam”, including the cast ceramic burner insert
