4059 - 3 inch Vertical Marine Boiler
4059 - 3 inch Vertical Marine Boiler
A 10% GST is included in these pages for Australian Customers. Prices for International Visitors are not taxed when accessing their own currency.
Couldn't load pickup availability

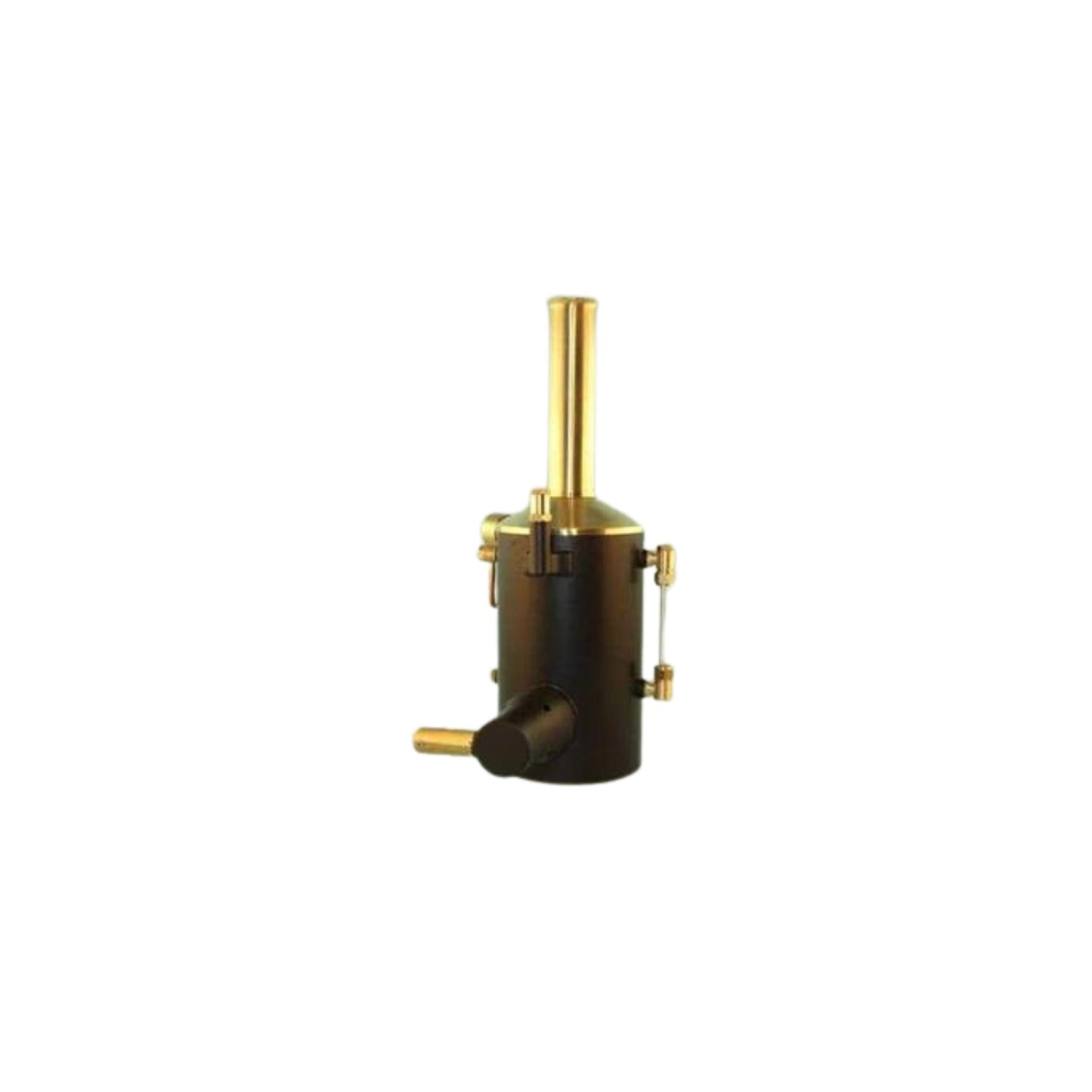

3" Vertical Boiler including Ceramic Burner, Wood Lagging Kit, Safety Valve, Pressure Gauge & Boiler Test Certificate.
Overall Dimensions:
Cylinder Diameter 3 inch 75 mm
Overall Diameter 4.25 inch 105 mm
Height of Boiler 5 inch 125mm
Height to top of steam cock 6.25 inch 160 mm (approx.)
Height to top of steam flue 9.25 inch 235 mm
Weight dry 1.02 kg
Working pressure 35 psi (2.5bar)
Test pressure 120 psi (8 bar)
Boiler fill capacity (75% of total volume) 355ml.
Design & Construction Standards:
“Miniature Steam”, boilers are built to the highest quality standards.
They comply. where appropriate, with the following design, construction and testing requirements of:
- Australian Standard AS 4343 Level E
- Australian Miniature Boiler Safety Committee, (AMBSC) code part 3 Issue 1.0 - 2006 Sub-Miniature Boilers and AMBSC code part I . Issue 7 - 2001
- UK Boiler Test Code 2018 – Volume 2
Every aspect of the boilers has been carefully designed and rigorously tested to meet the highest possible steam generation performance. Each has been designed and manufactured by “Miniature Steam”, including the cast ceramic burner insert
