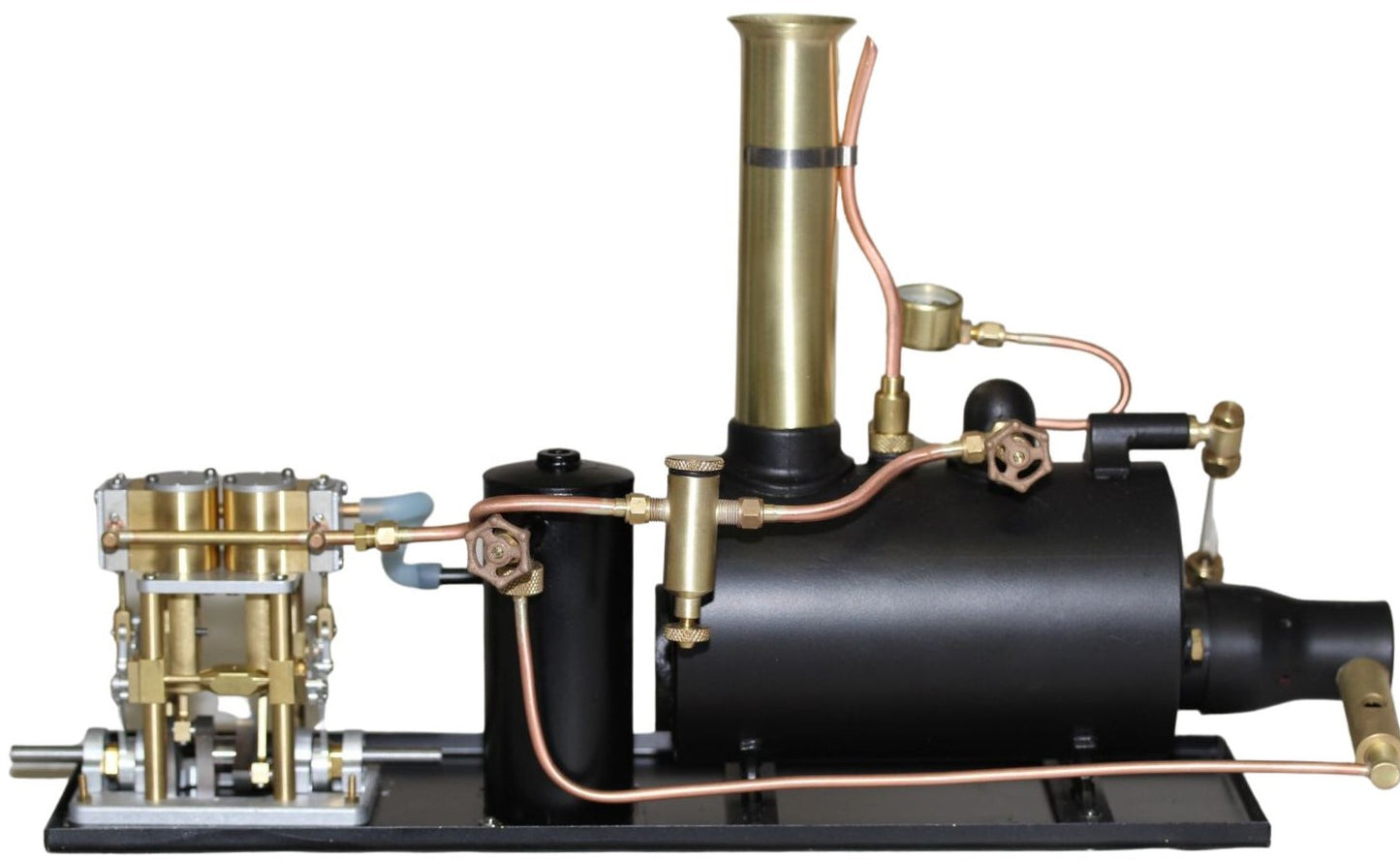

4048T 2" Horizontal Boiler Steam Plant - fit your own TVR1 engine
4048T 2" Horizontal Boiler Steam Plant - fit your own TVR1 engine
A 10% GST is included in these pages for Australian Customers. Prices for International Visitors are not taxed when accessing their own currency.
Couldn't load pickup availability

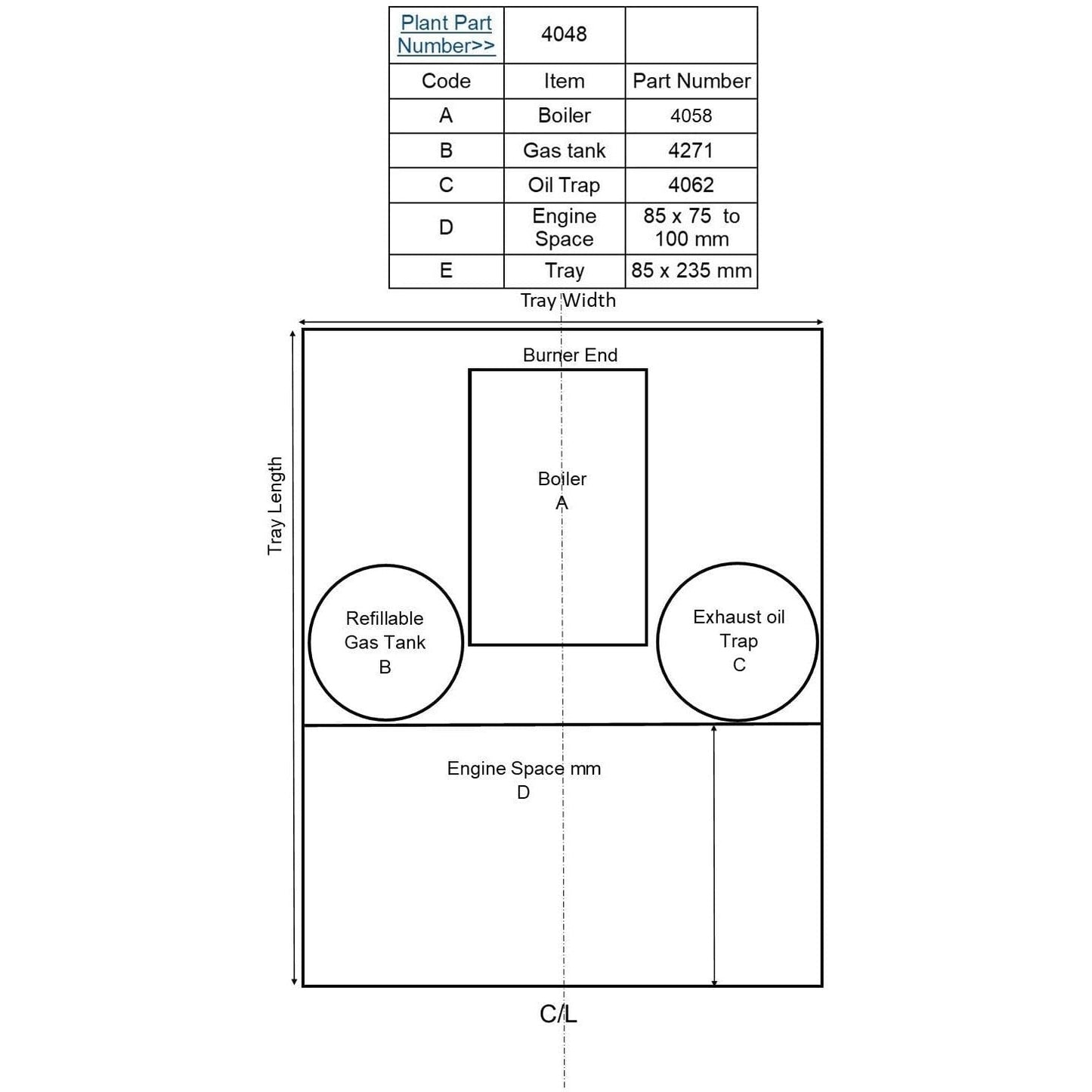

Supplied:
2” Horizontal Boiler P/N 4057 with Pressure Gauge
1-1/4" Vertical Refillable Gas Tank P/N 4271
1-1/4" Exhaust Oil Separator P/N 4062
Refillable Gas Tank Adaptor- Long (95 mm) P/N 4357
Screws/Bolts for Securing Components to Mounting Tray
Connecting piping for all components.
Possibly the special fittings required for steam connections if discussed with us at time of ordering
Engine:
Height to top of flue 140 mm
Maximum width 100 mm
Height to top of pressure gauge 95 mm
Overall length 280 mm
Engine height 80 mm
Weight 1620 gm
Output shaft diameter 5 mm
